The Hybrid KL provides functional power storage

The Hybrid KL is a modular power backup/buffer system that enables the efficient collection, storage and retrieval of power from renewable sources and the power grid. It can replace or supplement any generator application. The Hybrid KL provides backup power and acts as a buffer between the source and consumption. It can be used with any source including PV, turbines, diesel generators and the grid itself.



>BENEFITS<   >ASK US ABOUT IT<

KL Hybrid Storage benefits

Reliable

25 years lifetime, water and dust resistant
Fault tolerant, short mean time to recovery
High reliability & low maintenance costs
Charging profiles = longer battery lifespan

Flexible

Modular, interchangeable and expandable
Portable and easily deployed
AC, DC or both, On and Off grid use
Solar, Hydro, Wind, Generators & more

Feature-Rich

Remote monitoring and connectivity
Plug and play auto load management
Programmable power profiles
Low output for sensitive equipment

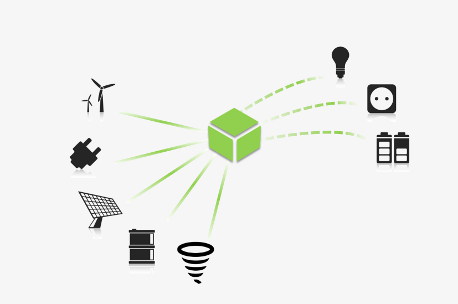

>HOW IT WORKS<   >ASK US ABOUT IT<

Features and advantages of KL Hybrid Power Storage

Spec Sheet

KL Hybrid Specifications

Specifications



  • Input (DC)
  • Voltage, maximal: 400 V
  • Input (AC)
  • Voltage, nominal: 230 V / 3 x 400V
  • Frequency: 45Hz-66Hz
  • Output (DC)
  • Voltage: 24V-220V
  • Power, nominal:N x 2000 W
  • Output (AC)
  • Voltage: 230V/110V
  • Voltage form: Pure sine wave
  • Power, nominal: N x 3500 VA
  • Battery
  • Voltage: 24V-220V
  • Capacity: No limitation
  • Type: any
  • Operating Conditions
  • Ambient temperature: -30°C to +65°C
  • Humidity: 0% to 95% RH non-condensing
  • Max altitude: ≤ 3000m above sea level
  • Dimensions and weight
  • Height: 2m, Width: 1.2m, Depth: 0.35m
  • Approx. weight (without battery bank): 90Kgs

Unit / System



  • Main Unit
  • Inverter inputs: AC / DC
  • Inverter outputs: AC / DC
  • AC-DC charge controllers
  • DC-DC charge controllers
  • Power distribution, control and monitoring unit
  • System management
  • Remote monitoring
  • Battery test and asymmetry control
  • Voltage temperature compensation
  • Fan speed regulation (current and temperature)
  • Digital, light and sound signalling (LCD display, LEDs)

Optimization and protection


  • Optimization and protection features
  • Three phase current balancing
  • Output voltage regulation
  • Low output voltage for sensitive equipment
  • Microcontroller regulated output voltage for low THD (Total Harmonic Distortion)
  • Programmable battery and charge management
  • Multiple AC and DC configurable sources
  • Generator management for optimal performance
  • Fully automated power factor correction, peak load shaving and current balancing
  • Extensive fault tolerance capacity/li>
  • Protection Circuitry
  • Protection against over-voltage and disturbances at the input
  • Protection against overload and short circuit at the output
  • Protection against deep battery discharge
  • Protection against overheating
